HTML5 Audio and Video

Audio & Video

  • HTML5 provides the native audio and video support without Flash.
  • The <audio> and <video> tags help in adding media to the website.
  • The src attribute is used to identify the media source and includes a control attribute so that the user can play and pause the media.

Embedding Video

Simplest form of embedding a video file is as follows:

<video src =“selfie.mp4” width=“400” height=“300” controls>
Browser does not support <video> element.
</video>

HTML5 does not specify which video formats should the browsers support in video tag.

The common video tags are:

1. Ogg – These files are used with Thedora video codec and Vorbis audio codec.
2. mpeg4 – These files are used with H.264 video codec and AAC audio codec.

A <source> tag is used to specify media along with the media type and many other attributes. Video element will allow multiple source elements and browser will generally use the first recognized format -

<!DOCTYPE HTML>
<html>
     <body>
     <video width="400" height="300" controls autoplay>
          <source src="/html5/love.ogg" type="video/ogg" />
          <source src="/html5/love.mp4" type="video/mp4" />
     </video>
     </body>
</html>

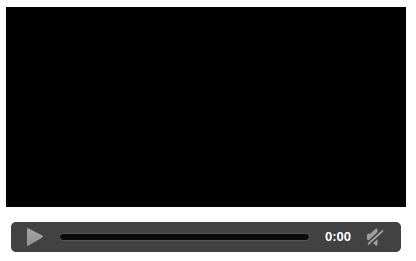

Output:

simple video

Video Attributes

The video tag has a attributes which help in controlling the look, feel and functionalities of the controls:

AttributeDescription
autoplayIf this boolean attribute is specified the video automatically begins to play back as soon as it can do so without stopping to finish loading the data.
autobufferIf this boolean attribute is specified the video automatically begins buffering even if it is not set for playing automatically.
controlsWhen this attribute is present, it allows the user to control video playback including the volume, seeking and pause/resume playback.
heightIt specifies the height of the video's display area in CSS pixel.
loopIf this boolean attribute is specified, it allows the video to be sought back to the start after reaching the end.
preloadIt specifies that the video is loaded at page load and is ready to run. It can be ignored if the autoplay is present.
posterIt is a URL of an image which is shown until the user plays or seeks it.
srcIt is the URL of the video used to embed. It is optional and can be used instead of using the <source> element within the video block to specify the video to embed.
widthIt specifies the width of the video's display area in CSS pixel.

Embedding Audio

The <audio> tag is used for embedding sound content in an HTML or XHTML document.

<audio src=“selfie.wav” controls autoplay>
Browser does not support the <audio> tag.
</audio>

The most common audio formats are ogg, mp3 and wav.

A <source> tag is used to specify media along with the media type and many other attributes. Audio element allows multiple source elements and browser generally uses the first recognized format -

<!DOCTYPE HTML>
<html>
     <body>
     <audio controls autoplay>
         <source src="/html5/selfie.ogg" type="audio/ogg" />
         <source src="/html5/selfie.wav" type="audio/wav" />
     </audio>
     </body>
</html>


Output:

simple audio

Audio Attributes

The video tag has a attributes which help in controlling the look, feel and functionalities of the controls as follows:

AttributesDescription
autoplayIt is a boolean attribute which when specified the audio begins to play back automatically as soon as it can do so without stopping to finish loading the data.
autobufferIt is a boolean attribute which is specified when the audio automatically begins buffering even if its not set to play automatically.
controlsWhen this attribute is present it allows the user to control the audio playback including the volume, seeking and pause/resume playback.
loopIf this boolean attribute is specified it will allow the audio to seek back automatically to the start after reaching the end.
preloadThis attribute specifies the audio that will be loaded at page load and is ready to run. It is ignored if the autoplay is present.
srcThe URL of the video is embedded. It is optional and can be used instead of using the <source> element within the video block to specify the video to embed.

Handling the Media Events

The audio and video tag have a number of attributes to control the various functionalities. Some of them are as follows:

EventDescription
abortThis event is generated when the playback is aborted.
canplayThis event is generated when enough data is available so that the media can be played.
errorThis event is generated when an error occurs.
endedThis event is generated when the playback is completed.
loadstartThis event is generated when the media begins loading.
loadeddataThis event is generated when the first frame of the media has completed its loading.
playIt is generated when the playback starts or resumes.
pauseIt is generated when the media is paused.
progressIt is generated periodically to inform the progress of the downloading media.
ratechangeIt is generated when the speed of the playback changes.
seekingIt is generated when a seek operation begins.
seekedIt is generated when the seek operation completes.
suspendIt is generated when the loading of media is suspended.
volumechangeIt is generated when the volume of the audio changes.
waitingIt is generated when the requested operation is delayed pending the completion of another operation.

Example : Demonstrating the playing of the video

<!DOCTYPE HTML>
<html>
     <head>
     <script type="text/javascript">
          function playingvideo()
          {
               var v = document.getElementsByTagName("video")[0];
               v.play();
          }
     </script>
     </head>
<body>
     <form>
          <video  width="400" height="300" src="/html5/selfie.mp4">
          This browser does not support the video element.
          </video>
          <br />
          <input type="button" onclick="playingvideo();"  value="Play"/>
     </form>
</body>
</html>

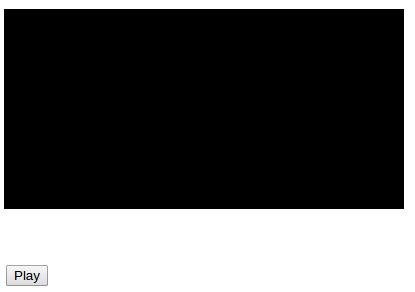

Output:

video play button
